Allen and Heath QU 32, 32-Ch Digital Mixer

List price: $4,599.00
$3,999.99
You save: $599.01 (13%)
Free shipping
Save 13%
Qu-32
In stock
+

  • Pinterest

Description

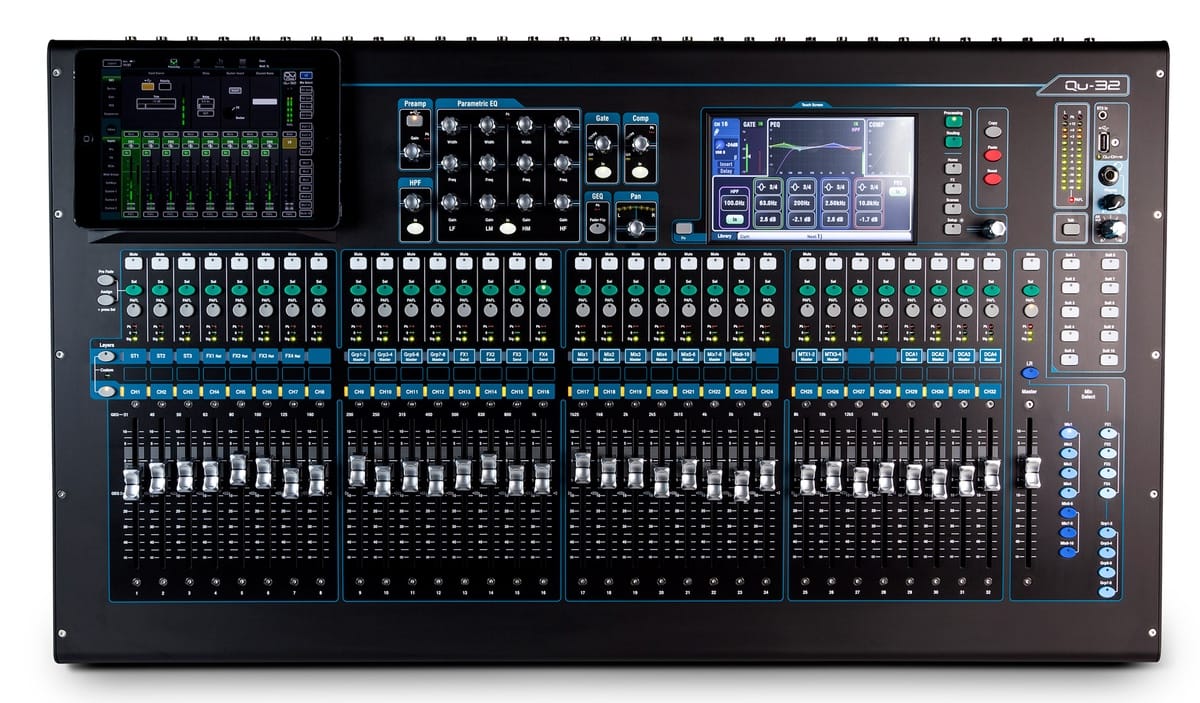

The Qu-32, 32 Channel Digital Mixer is at another level. Responsive touchscreen, 33 motorized faders, and acclaimed AnalogiQTM recallable preamps. The Qu-32c combines exceptional ease of use with class-leading audio performance. Borrowing for its big brother the GLD and iLive touring systems, the Qu-32C makes Allen & Heath digital mixing more accessible than ever.

THE MIXING EXPERIENCE

Having massive processing power and advanced functionality is excellent, but it counts for nothing if you can't access the controls you need in a heartbeat. Once you start using Qu-32C, you'll sense the years of research into ergonomics and the hands-on mixing experience that Allen & Heath has drawn upon to deliver a wonderfully natural layout and workflow. The Qu-32C it's about creating an experience that s fluid, comfortable and intuitive for novices, digital natives and old school road warriors alike.

TOUCH CONTROL

The 7 inches, 800 x 480, sixteen million color Touchscreen and its dedicated data encoder form the heart of the Qu-32C interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

Qu-Drive

The Qu-32 is ready to record your show in the purest possible way. All you need to do is insert an USB-drive into the Qu-Drive port and record or playback 18 channels. You have the option to record one stereo track and 16 mono.

FADER AUTOMATION

Fader automation is essential for rapid mixing, especially when you 're dealing with multiple monitor mixes just press a mix key and the faders immediately fly to the send levels for that mix. Qu-32C features 33 motorized ALPS faders, 32 arranged over 2 layers, allowing instant access to all channels and masters in a compact space, plus a dedicated master fader which dynamically follows the mix selection.

TOTAL RECALL

Accurate digital mixing is about being able to save and recall scenes (snapshots) at the press of a button. The Qu-32C can store up to 100 full Scenes for recall at will. Channels and mixes can be made Safe from Scene recall. For example, if an instrument or mic gets swapped out after the soundcheck, the channel can be made safe to avoid settings being overridden by Scene recalls

Features

Brand name:
Allen & Heath
Height:
7.32"
Depth:
19.52"
Width:
33.42"
Weight:
53 lbs
Manufacturer Part Number:
QU-32C
Physical Channels:
32
Physical Outputs:
24 Mix Outputs (XLR)
Effects:
4 x effects engines
Motorized Faders:
33
USB :
1 x USB A - 1 x USB B
Recording:
USB B multitrack + USB A stereo recording
Tablet controlled:
Yes, with external router
Digital Input/Output:
dSNAKE
In-Ears Monitors:
Allen & Heath ME personal monitor system
12 V Lamp:
XLR Connection
Tackback Mic:
Yes, with XLR connection
Digital Snake Option:
dSNAKE
Headphones Input:
1/4 headphones output
MIDI I/O:
No
EQ Bands:
4-band parametric
Inserts :
Internal
Rackmountable:
No
Screen Size:
7" Touchscreen
Touch Screen:
Yes
Voltage:
120V - 240V
Computer Conectivity:
USB Type A & B
